TVEC 3 enables you to use the Sustain Pedal for 2 different functions:
Function 1 - Normal full sustain. The sustain pedal behaves in a conventional way which sustains all notes for as long as you hold down the pedal.
Function 2 - Sustain Pedal Note Extension and Slur. Sometimes when you play a repeated note, you may find that there is too much of a gap between the notes. You can fix this so that the phrase sounds more musical.

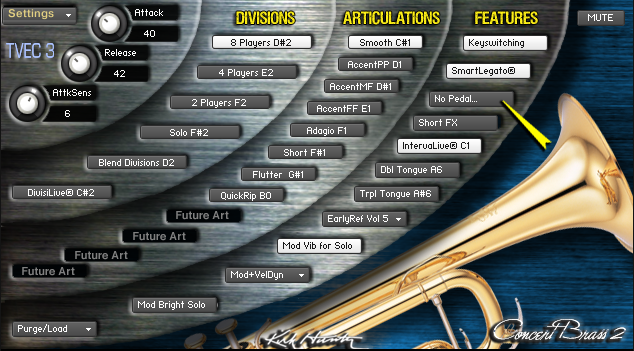

To set sustain pedal properties, either click the Sustain Pedal Button...

Please note that the graphic below is the GUI for Concert Brass 2. However, it is the same one used in Diamond Brass and Woodwinds.

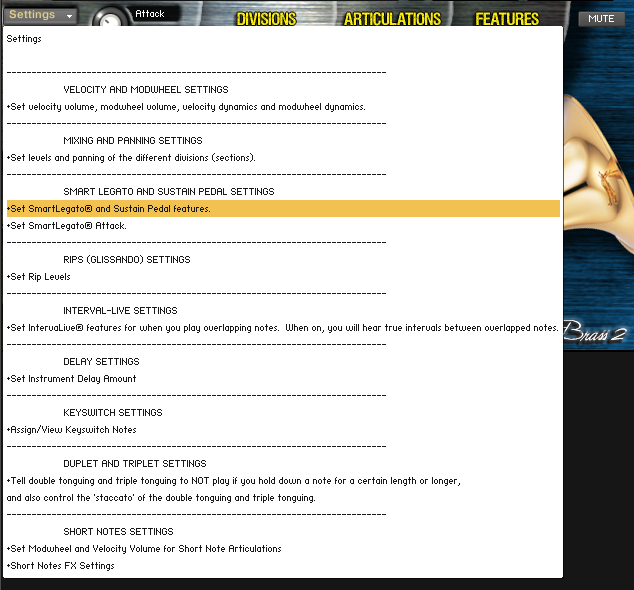

...or choose "Set SmartLegato® and Sustain Pedal features" from the "SETTINGS" menu.

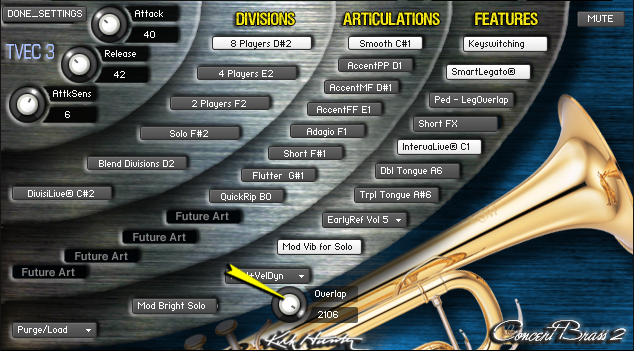

You will see the "Overlap" knob appear.

Higher values here will increase each note's extension into the following note.
To use the sustain pedal as a normal, full-hold controller, set the Overlap knob to its highest value (2200).
Once you are satisfied, then click "DONE_SETTINGS".
